Clutch Pressure Plate

Short Description:


Cedars provides factory direct parts clutch pressure plate for Hyundai and Kia passenger cars with 2 years warranty. The clutch pressure plate performs well in toughness, strength, fatigue resistance etc., and passed more than 1 million times fatigue testing.

  • Brand Name: VIVN
  • MOQ: 5 pieces
  • OE Part Number: 41300-28060; 41300-39260; 41300-3D000 etc.
  • Application Model: Hyundai TUCSON; IX35; Kia K5; KIA SPORTAGE etc.
  • Product Detail

    Product Packing

    Product Tags

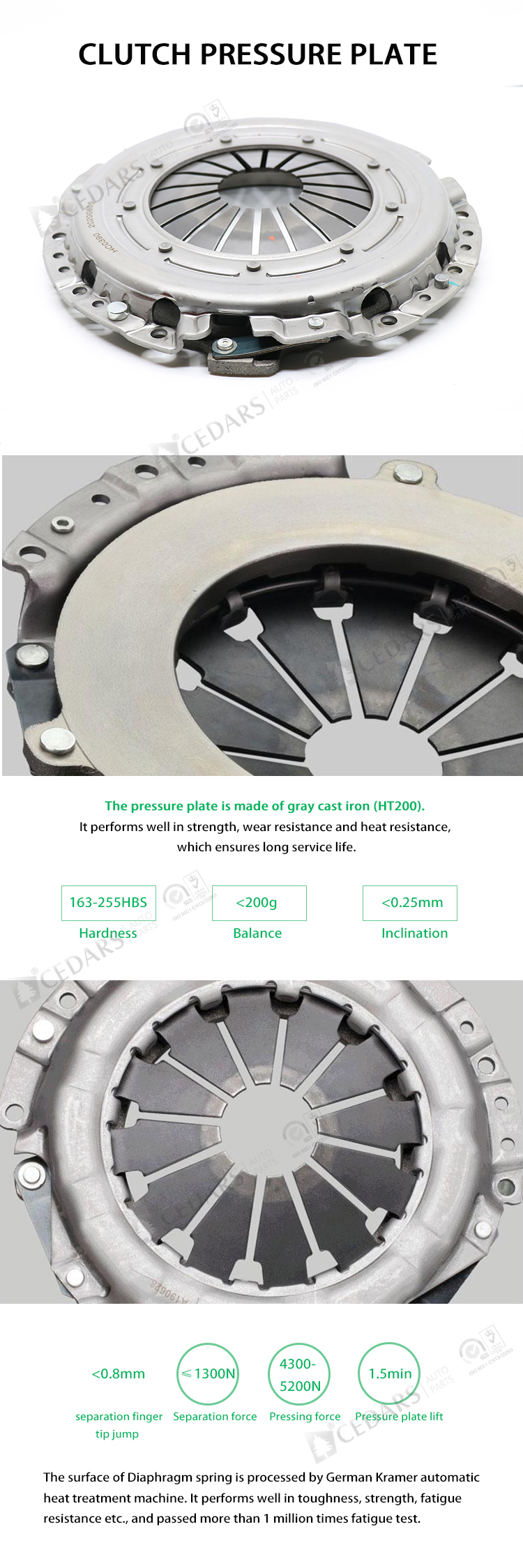

    Clutch Presuure Plate for Hyundai and Kia

    The pressure plate is made of gray cast iron (HT200). It performs well in strength, wear resistance and heat resistance, which ensures long service life.

    Hardness: 163-255 HBS

    Balance: <200 g

    Inclination: <0.25 mm

    Diaphragm spring

    The surface of Diaphragm spring is processed by German Kramer automatic heat treatment machine.

    Separation finger tip jump < 0.8 mm

    Separation force < 1300 N

    Pressing force: 4300-5200 N

    Pressure plate lift: 1.5 min
